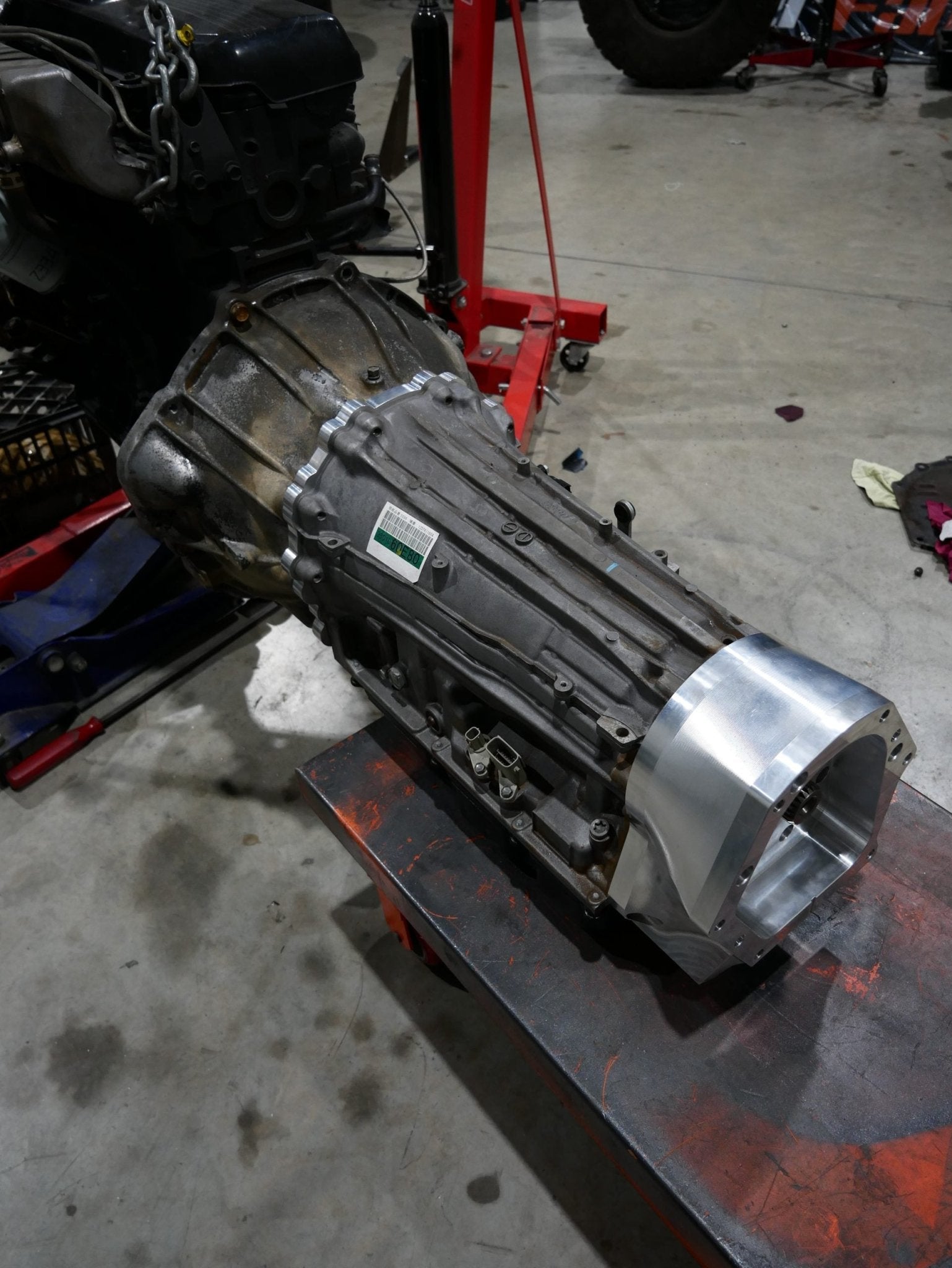

Toyota 1HD-FTE to AB60 200 Series LandCruiser Transmission Adaptor Kit

Toyota 1HD-FTE to AB60 200 Series LandCruiser Transmission Adaptor Kit

Complete billet adaptor set allowing the VDJ200 Series LandCruiser AB60 (6 Speed Automatic Transmission) to be utilised behind the legendary Toyota 1HD-FTE Engine! This will also work with other Toyota 1H/D variants such as 1HD-FT, 1HD-T, 1HZ etc as they share the same crank/bellhousing pattern.

The AB60 is a modern, strong, widely supported 6-speed automatic with excellent gear ratios and torque-handling ability. They are a rock solid transmission that have proven their worth behind 400Hp+ tuned V8 diesel Landcruiser’s & Tundra’s. Behind a 1HD-FTE, it transforms drivability, while offering highway efficiency and comfort that older autos can’t match. Perfect for LandCruiser enthusiasts upgrading their 80, 100, or 105 Series with a tuned 1HD-FTE and wanting a modern, strong, and efficient 6-speed automatic transmission.

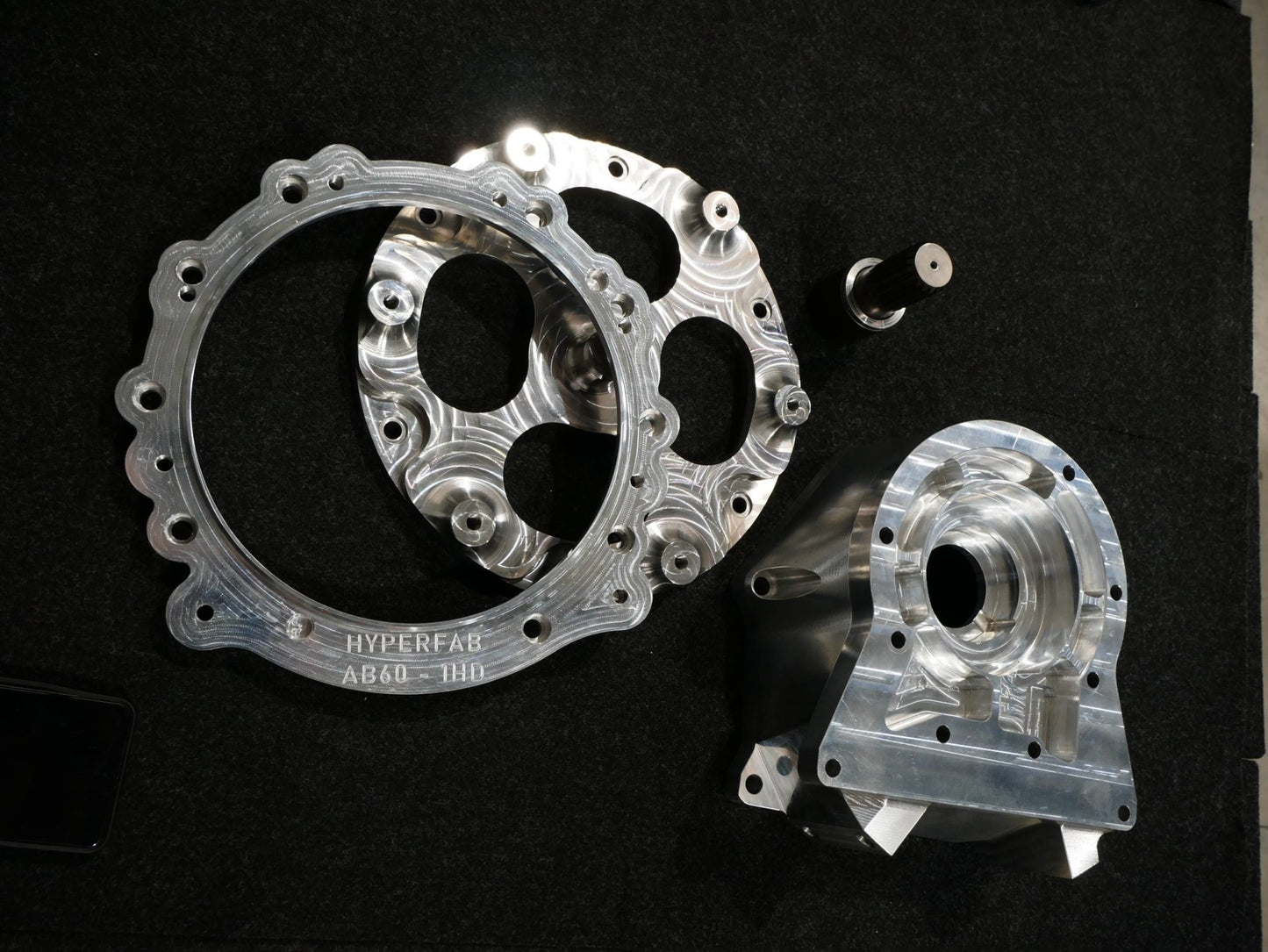

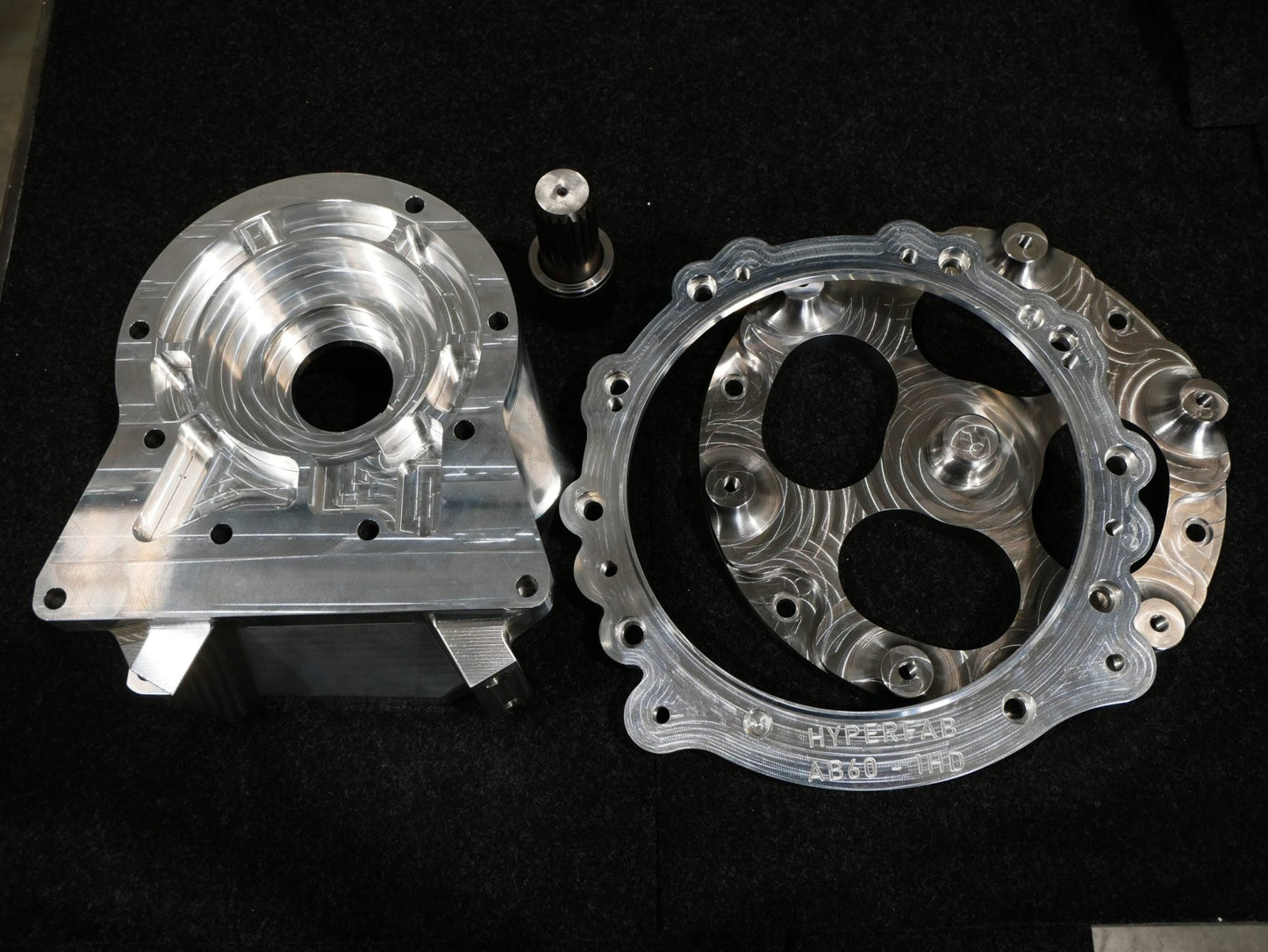

Adaptor Kit Includes:

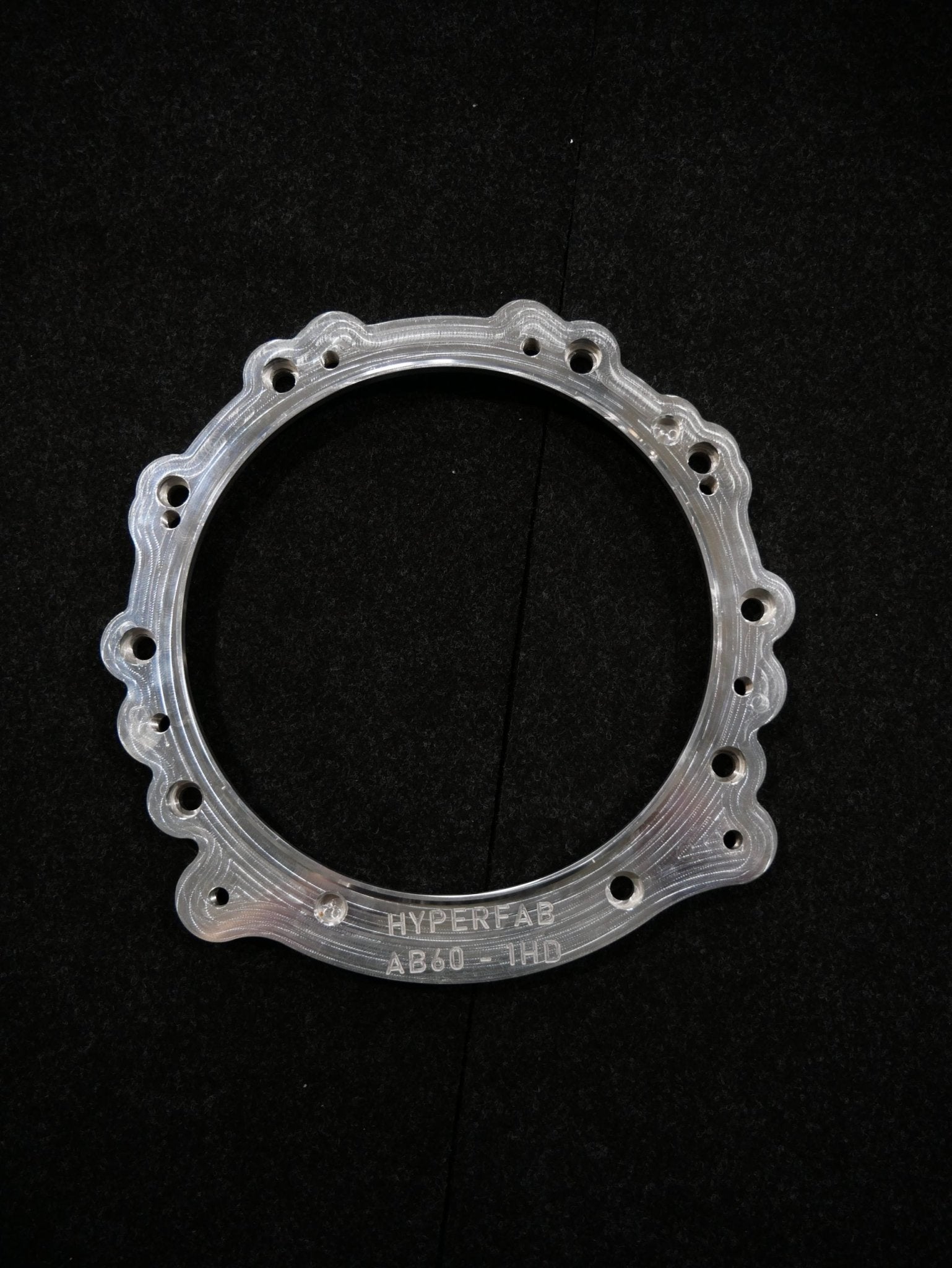

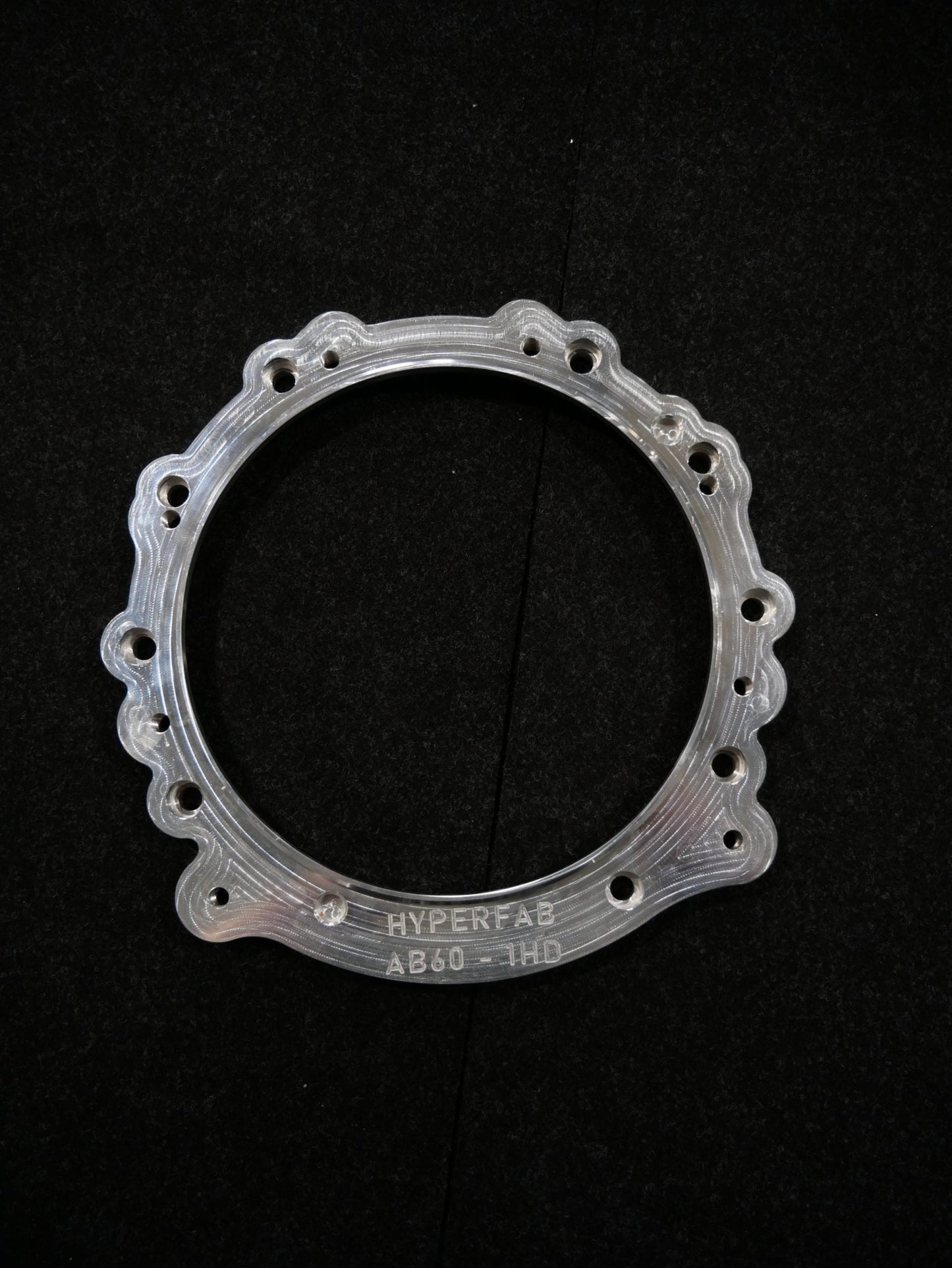

• Billet CNC Aluminium Bellhousing Adaptor. Utilises all mounting holes between the AB60 & Bellhousing, and the factory locating dowels. Perfect alignment achieved from both dowels and locating lip on both sides of adaptor plate.

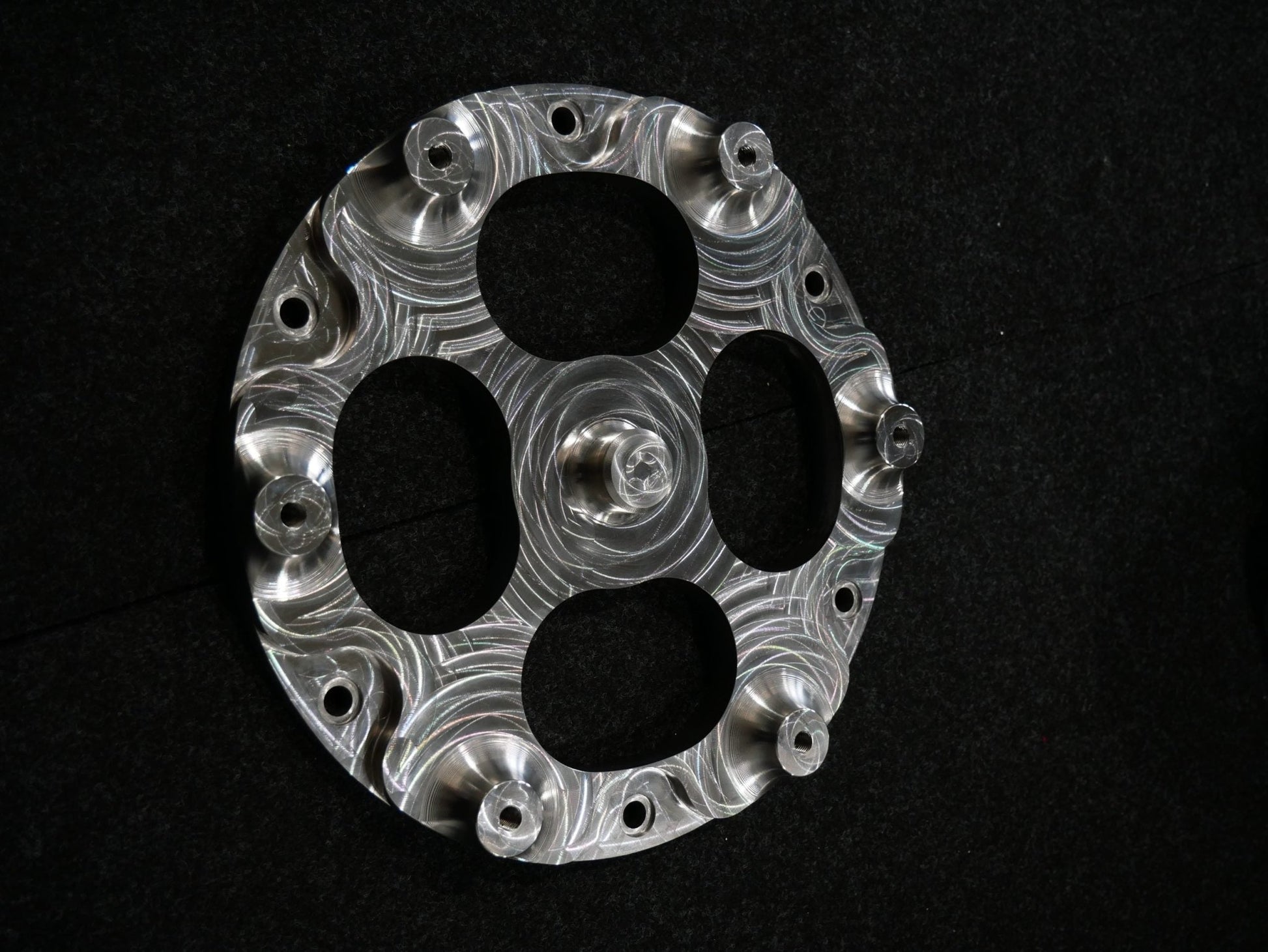

• Billet CNC 4140 Chromoly Torque Converter Adaptor (spigot aligns converter into back of crank)

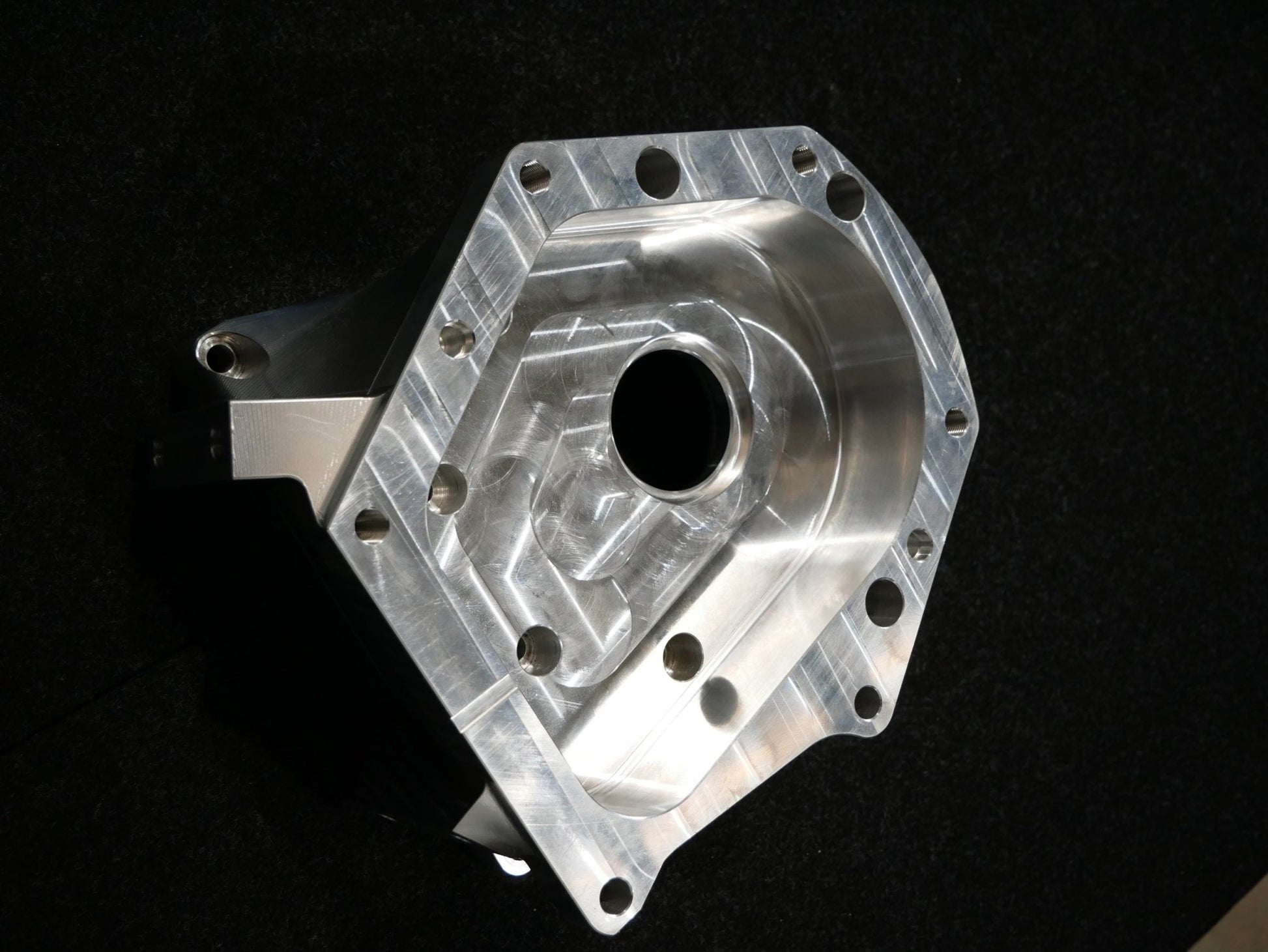

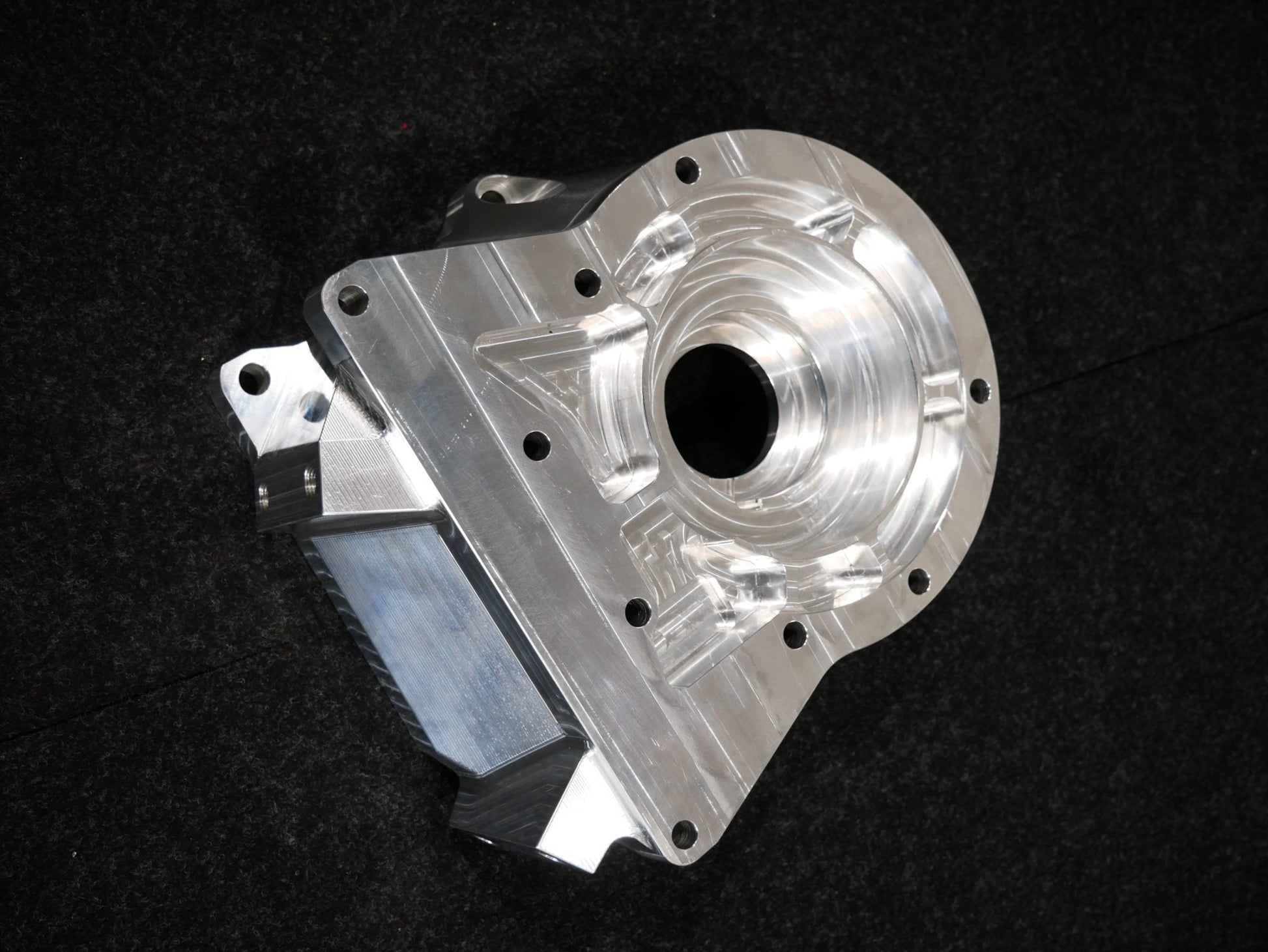

• Billet CNC Aluminium Transfer Case Adaptor with factory rubber mount provision

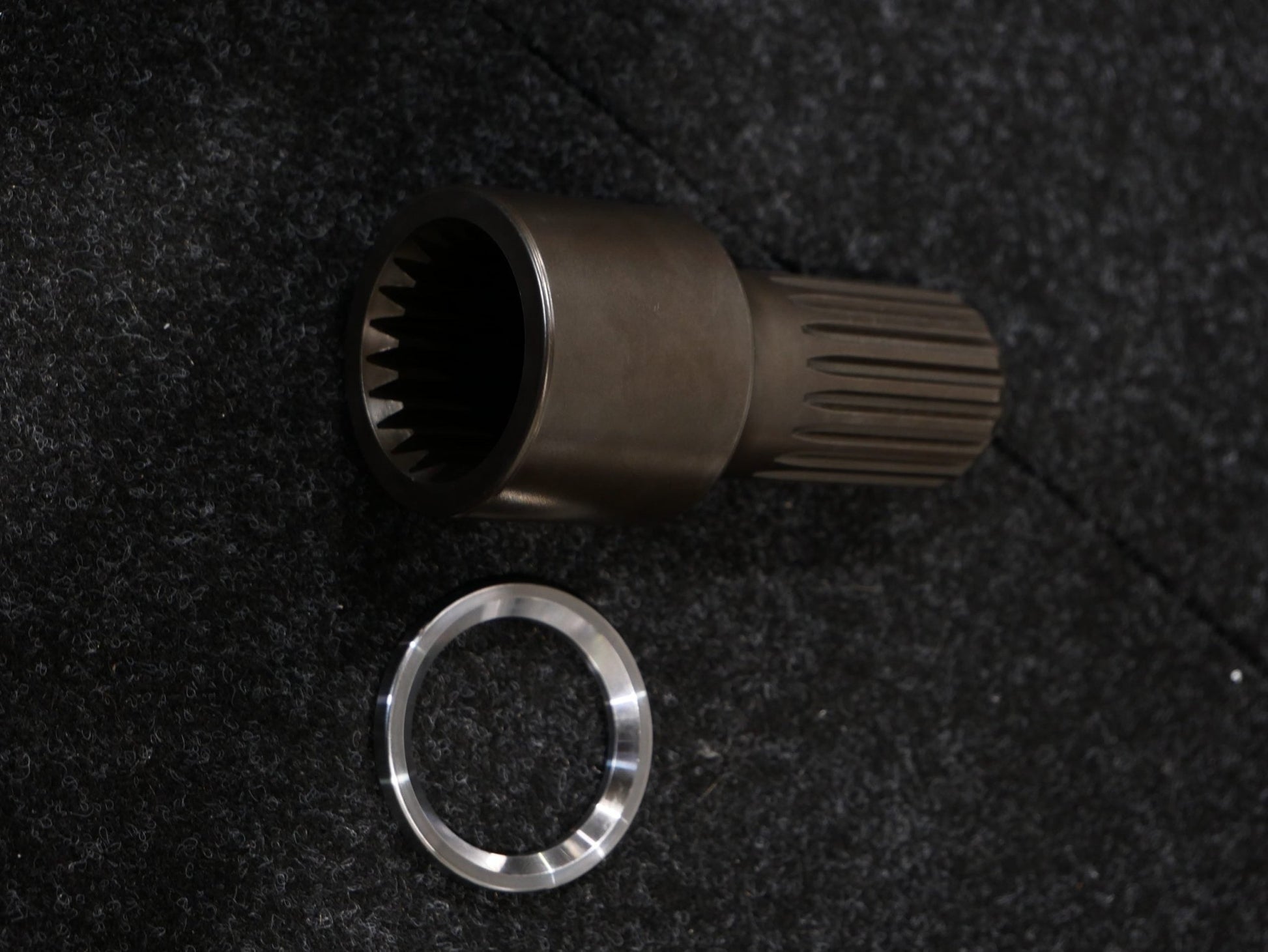

• Splined Spud Shaft for AB60 to Toyota HF1A / HF2A Transfer Case
• Kit comes complete with absolutely all bolts!

Notes:

• Kit uses a factory 4 Speed A442F Auto Bellhousing, Flex Plate & Counterweight
• Uses the 200 Series Torque Converter
• Factory Engine to Gearbox Sandwich Plate must be retained for correct adaptor spacing
• There are a few control options available for the AB60 – Boostec TCU / Compushift, etc. Torque reduction on shift will provide a more comfortable shift and maintain gearbox reliability
• 4 Week Lead time if not in stock
